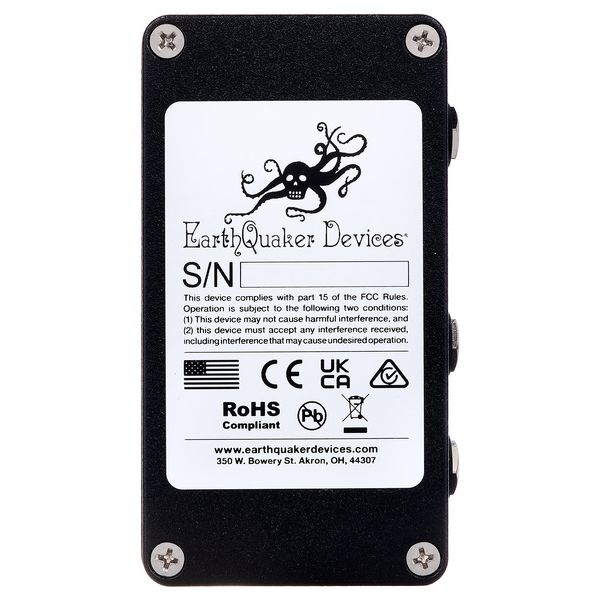

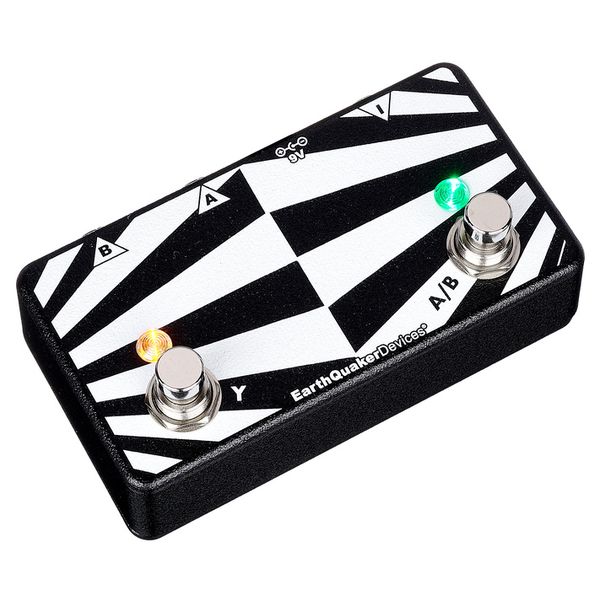

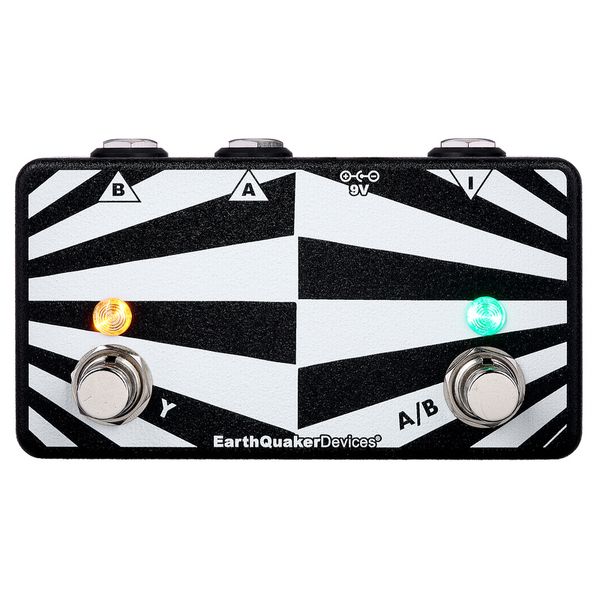

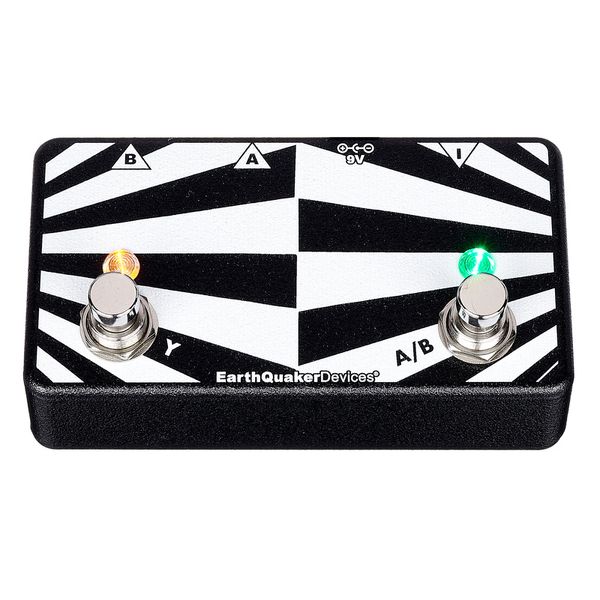

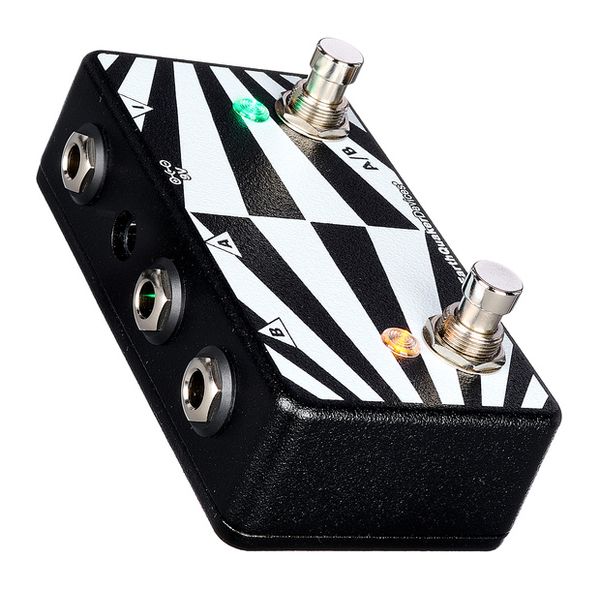

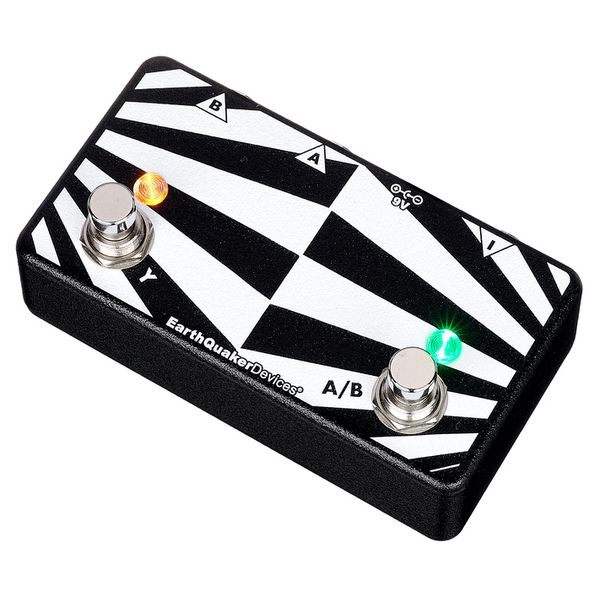

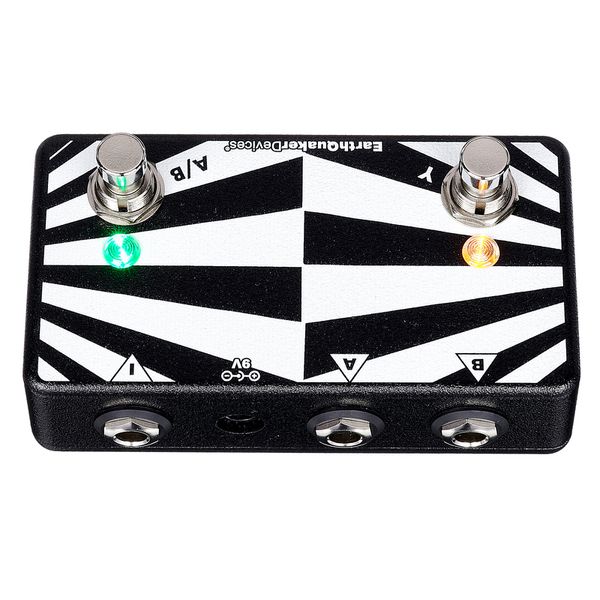

EarthQuaker Devices Passive ABY Box

A/B/Y Switch / Splitter

  • Perfect for routing instruments, amps, effects, speaker cabinets, etc.
  • Two different modes available: A/B - Y and A&B - Y
  • Inputs and outputs can be used in both directions
  • Enables the switching of an input signal to two outputs or two input signals to one output, the splitting of the signal to two outputs and the combination of two signals to one output
  • True bypass
  • Foot switch: Y, A/B
  • Status LEDs

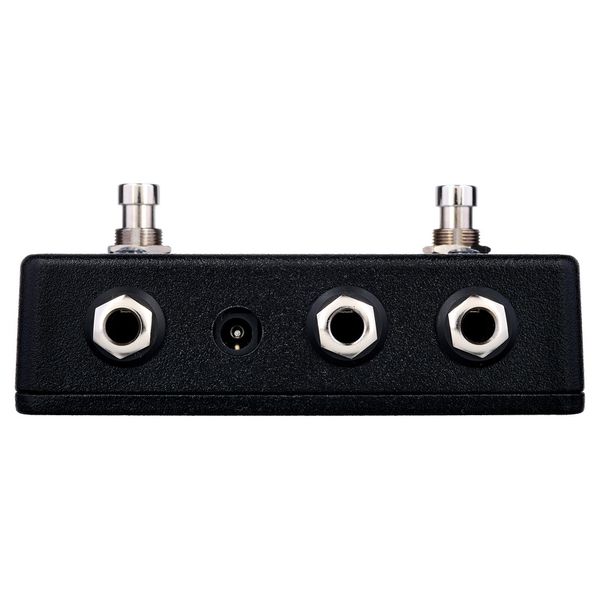

  • Input and output: 6.3 mm mono jacks
  • Power consumption: 60 mA
  • Power supply via 9 V DC mains adapter (2.1 x 5.5 mm barrel connector, centre negative - not included)
  • Metal housing
  • Dimensions: (L x W x H): 113 x 73 x 48 mm
  • Weight: 231 g
  • Handmade in USA

Note: No battery operation possible

Note Register your purchase at www.w-distribution.de/en/Warranty for an extended warranty of 4 years.
Available since November 2024
Item number 602834
Sales Unit 1 piece(s)
Type A/B/Y
LED Display Yes
PSU Connector Yes
Shape Floor Effects Pedal
MIDI Interface No
322 AED 83,19 €
Plus 269 AED shipping
The price in AED is a guideline price only
Since we ship from Germany, additional costs through taxes and customs may be incurred
In stock within about one week
In stock within about one week

This product is expected back in stock soon and can then be shipped immediately.
