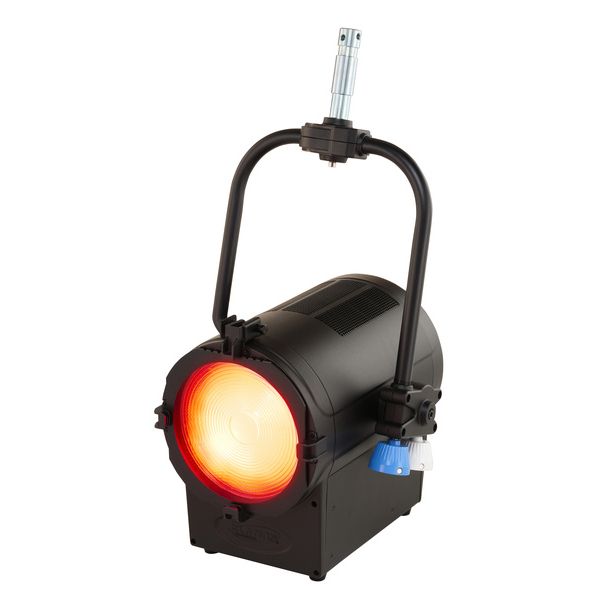

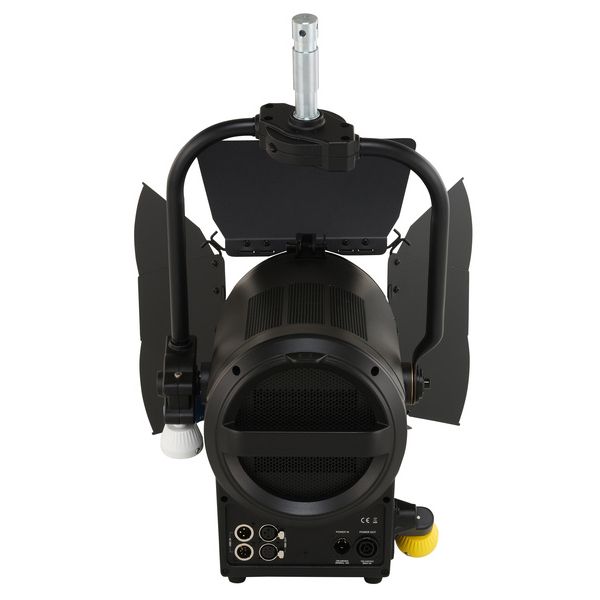

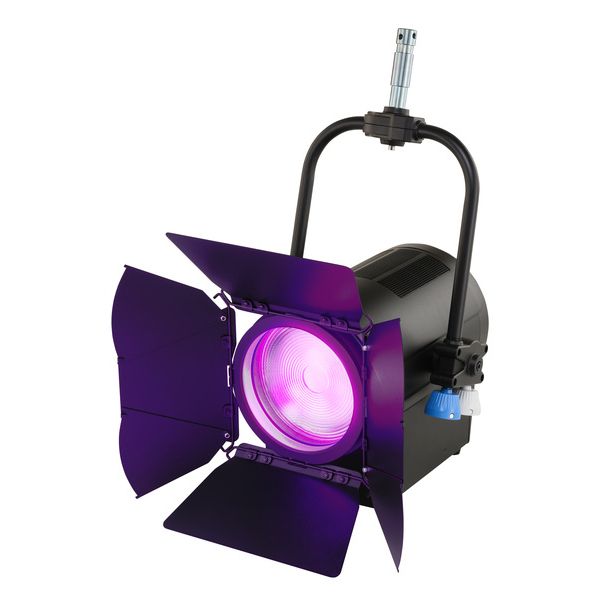

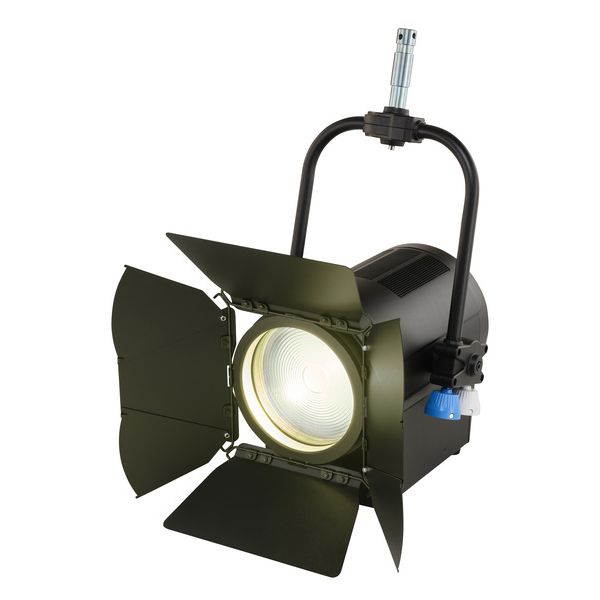

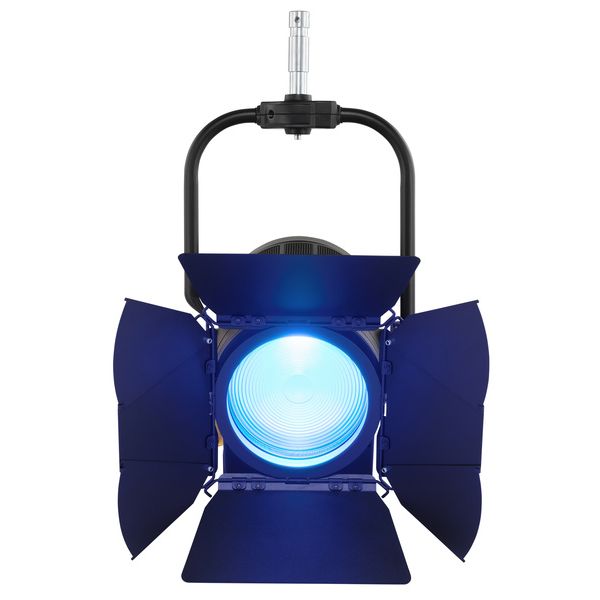

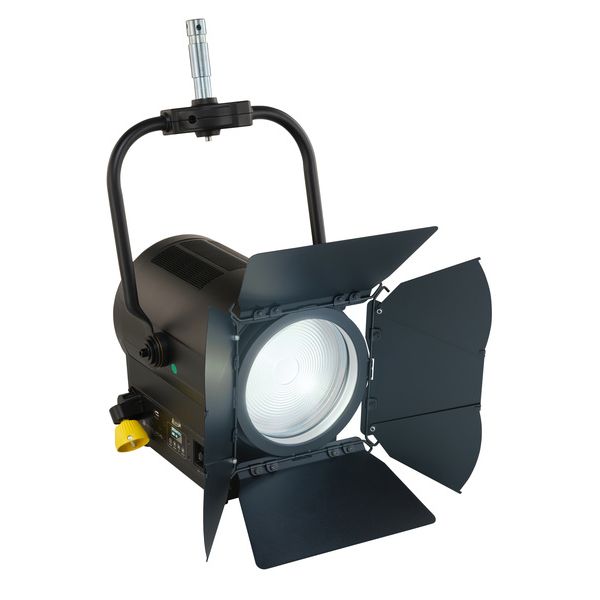

Elation KL Fresnel 8 FC P.O.

LED Fresnel Spotlight

Pole-mounted remote-controlled LED Fresnel spotlight including barn doors
500 W RGBMA LED engine
Continuously variable P.O. zoom from 10° to 50°
Stepless colour mixing & colour temperature (2,400 - 8,500 K)
Light output 18,000 lumens
RGBMA under the lens
Extended colour spectrum thanks to additional mint and amber LEDs
Manual adjustment of brightness & colour via jog wheel
Stand Alone Programming
Memory for last operating status
Selectable PWM frequency (900 Hz - 25KHz)
Variable dimmer curves
Green/magenta customisation
Virtual colour wheel
Default Set function
Display Password
No DMX backup (Close, Hold, Auto Programme)
Software update via USB & DMX 512
5V USB port for the power supply of external accessories

Technical data:

LED-Type: 1x 500 W RGBMA COB
Colour temperature: 2,400 - 8,500 K
Beam angle: 10°-50°
Standalone and DMX Mode
Protocol: DMX 512-A (RDM)
Number of DMX channels: 1/6/9/11/14/18 (6 modes)
DMX connection: 3, 5-pin XLR In/Output
Cooling: temperature controlled fan
Power connection: Power Twist TR1 In/Output
Mains voltage: 100 - 240 V 50/60 Hz
Current consumption: 2.2 A at 230 V
Housing: Die-cast aluminium
Dimensions: (L x W x H) 38.3 x 33.4 x 49.8 cm
Colour: Black
Includes mounting bracket with 28 mm TV spigot, 8-leaf barndoor (rotatable), colour filter frame and Power Twist TR1 connection cable

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since July 2024

Item number 593001

Sales Unit 1 piece(s)

Light source LED

Optical system Fresnel

Power 500 W

Fanless No

Colour mix / Colour temperature RGBMA

motorized zoom No

Beam angle 10 ° – 50 °

Housing Colour Black

Number of LEDs 1

single LED power 500 W

LED Type COB
