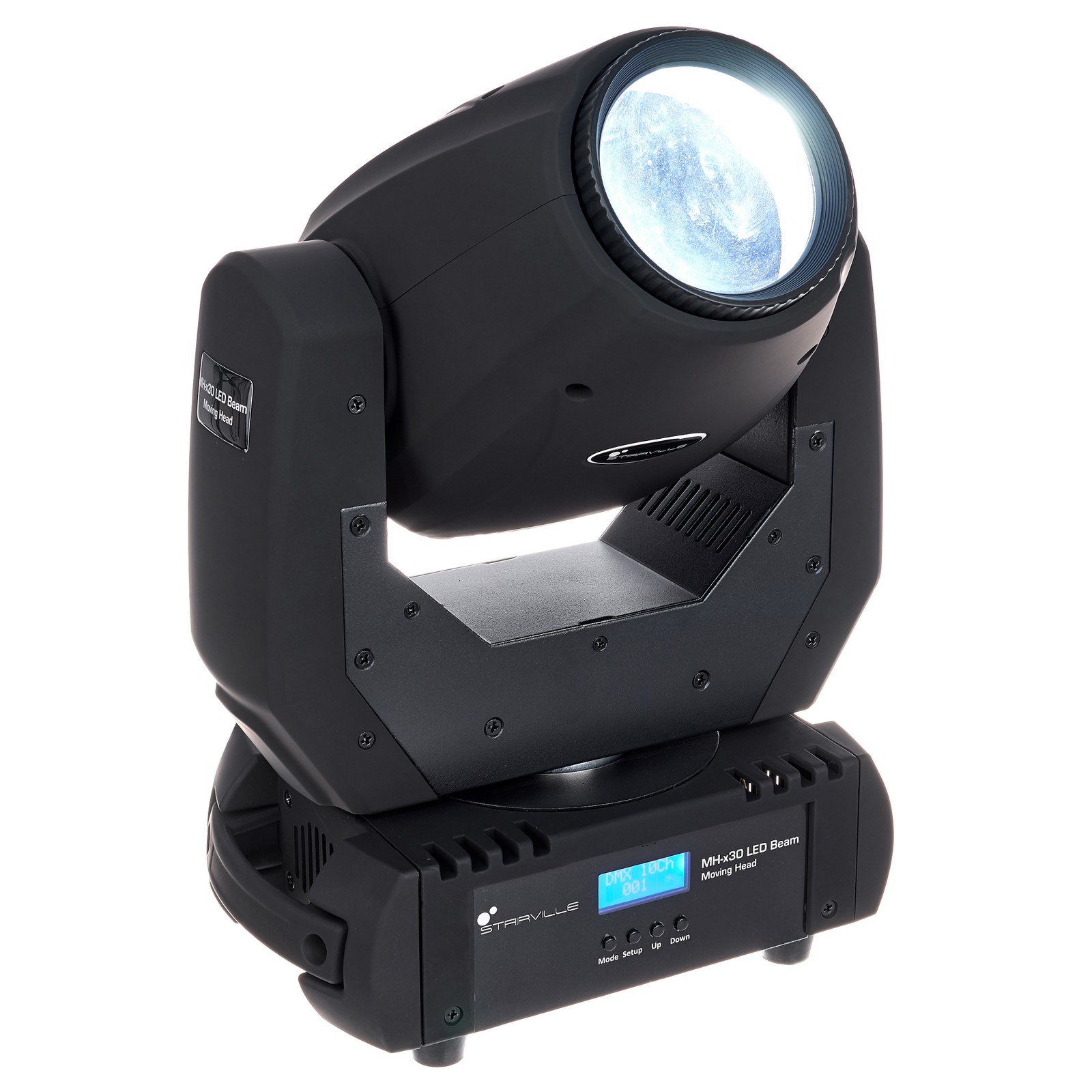

Stairville MH-x30 LED Beam Moving B-Stock

B-Stock with Full Warranty
Return that may have slight traces of use.

Beam Moving Head

Compact moving head
With beam optics and impressive power
With gobo wheel
Creates an extremely bright and sharp beam, even when using the colour wheel
Extremely narrow beam of 2.8 degrees
High light output
Extensive functions
Professional features such as power twist input and output
Suitable bag: Art.498082 (not included in delivery)

Technical specifications:

Light source: 30 W white light LED / 6000 K
Optics: Beam angle 2.8°, max. Luminous efficacy 6366 lm, 57560 lux @ 3m
Control: DMX 512 (7 or 10 channels)
Automatic mode
Sound-to-Light
Master / slave mode
Pan: 540°
Tilt: 270°
Pan and inverse tilt adjustable via display
Automatic pan and tilt correction
Dimmer: 0-100% Linear
Strobe effect: 0 - 20 Hz
Colour wheel with 7 colours + split colours + open and colour run in both directions with speed control
Gobo wheel with 15 static gobos
Manual focus
Fan cooled
Connections: DMX input and output: 3-pin XLR
Current input and output: Power twist (max. 15 devices in series at 240 V)
Power twist cable included
Digital display
Installation: Omega bracket (included)
Power supply: 100-240V, 50/60 Hz, max. Power consumption: 68 W
Dimensions (H x W x D): 386 x 245 x 150 mm
Weight: 5.8 kg

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since April 2017

Item number 414029

Sales Unit 1 piece(s)

Type Beam

Power of the light 30 W

Colour Mixing Colour Wheel

Motorized zoom No

Motorized focus No

Rotating gobos No

Static gobos Yes

Number of Colour Wheels 1

Iris No

Prism No

Type of lamp LED

Light output 30 W

Gobo wheel 1

Also available as brand new product 1.269 AED

1.089 AED 273,11 €

Plus 277 AED shipping

The price in AED is a guideline price only

Since we ship from Germany, additional costs through taxes and customs may be incurred

Sales Rank

in Moving Heads - Beam

Rays made visible

The MH-x30 LED Beam Moving Head from Stairville enhances party locations with moving show effects, both coloured and white, as well as graphic patterns that dance through the air. This distinguishes it from the Stairville MH-x30 LED Spot Moving Head, which projects gobos onto surfaces. A closer look reveals a powerful 30W white LED in the centre of the head, in front of which a colour wheel and a gobo wheel are placed. The MH-x30 LED Beam Moving Head can be set up in a free-standing manner or suspended from a truss, and operated with comparatively few DMX channels. A matching Omega bracket with quick-release fasteners is already included in the scope of delivery, as are the safety rope and a Power Twist mains cable that is secured to prevent accidental disconnection from the socket. A safety rope is attached to the underside.

Turn a space into a performance

The Stairville MH-x30 LED Beam Moving Head makes beams of coloured or white light visible in the air, so it works best in combination with haze or fog. The wide range of features provided by this specialist unit makes for attractive spatial effects, especially when accompanied by music. Among these are the 30W, 6,000-Kelvin white LED and a colour wheel with seven full and split colours as well as white. Another wheel features 15 static gobos with an optional shake effect. The beam, which is narrowly focused at 2.8°, is also suitable as a stroboscope with variable speed. Clear projections on surfaces, on the other hand, are the domain of the spotlights. When the unit's sound-to-light function is activated, the light flashes to match the beat. Eight automatic programmes are stored for this purpose, and both functions can be used when the moving head is operated alone or in master-slave mode, i.e. not controlled via DMX.

For mobile DJs, discos, clubs, and event venues

The Stairville MH-x30 LED Beam Moving Head is suitable for beginners to the world of moving heads as well as for professionals. On small to medium dancefloors, the head, which weighs just 5.8kg, will convince DJs and club owners alike without any of its operational noise being noticed. Those who prefer to operate the moving head on the sidelines will probably place it upright for easy access to the control panel in the base. With four menu buttons, DJs and event venue managers can choose from various automatic programmes and illuminate the air above the dancefloor. If, on the other hand, stage technicians suspend the unit from a truss, the display can be rotated by 180°. In DMX mode, it is possible to choose between seven and ten-channel mode.

About Stairville

Since it was introduced in 1994, Thomann’s in-house brand Stairville has been a permanent fixture in the store’s product range. The brand primarily focuses on the field of stage lighting in general, and its products include spotlights, moving lights, and theatre lighting as well as smoke machines, electronic control systems, and every other accessory you can think of. Thomann constantly has around 1,600 Stairville products on offer, and the figures speak for themselves: Statistically, one in every fifteen Thomann customers owns at least one Stairville product. Incidentally, the name “Stairville” is also a catchy English translation of “Treppendorf”, the town that Thomann calls home.

Patterns in the air

For impressive lighting effects, suspend two MH-x30 LED Beam Moving Head units so that they shine from above across the location. Connect a DMX cable to the first moving head and connect its output to the second moving head in order to control them via a DMX desk. Next, simply plug both into the mains power supply and assign them the same DMX address in the respective menus. Then place a hazer in one corner of the room, and the otherwise invisible haze will highlight the beams of light impressively. Using the gobo wheel, 3D graphic patterns will now become visible through the light cones, circulate around the room, and change their colour. Here, it is worth purchasing a lighting desk with which chasers can be stored. In this way, you can create customised effects in advance, which then only have to be selected for the show.
