Bundle offer comprising

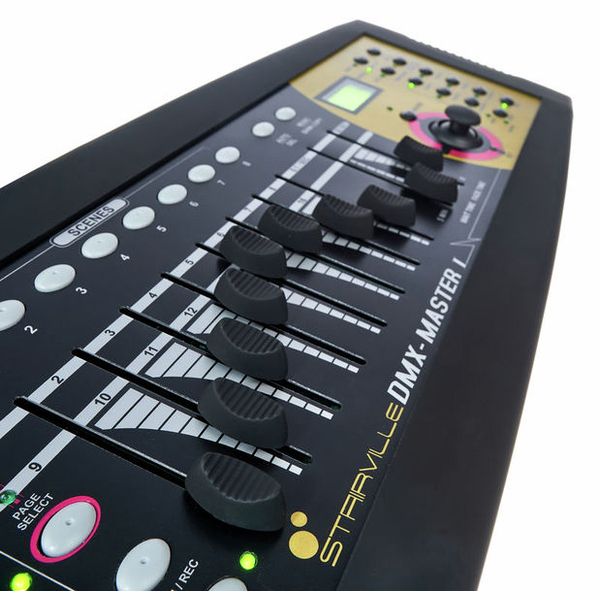

Stairville DMX-Master I
DMX Controller
The Stairville DMX-Master can be operated from a maximum of 12 devices with up to 16 DMX channels. It is easy to handle, which makes it ideal for the beginners in the area of scanner and moving lights programming. The 19" device with 3 rack units is suitable for many applications.
- Operating up to a maximum of 12 devices with up to 16 DMX channels (192 DMX channels)
- 30 Banks of 8 freely programmable scenes
- 240 Programmable scenes
- 6 Chases with up to 240 scenes
- DMX channel adjusting over 8 faders with bank switching
- Scene speed adjustable over the faders
- Built-in microphone for Music triggering
- Continuous Fade Time setting (0-30 s) via sliders
- Master Black Out
- Manual override of scenes in process
- Size: 19" / 3 U, Depth: 65 mm
- Dimensions with Frame: 53 x 19 x 9.2 cm
- Weight: 2.3 kg
Stairville LED Power & DMX Bar
T-Bar Truss
- For LED-PARs or other DMX spotlights
- 5 Protective contact sockets on the front
- 5 DMX outlets on the front
- DMX in- and output on the front
- Power Twist input on the side
- Includes 4 attachment screws for spotlights and a stand mount flange for easy setup on a speaker or lighting tripod
- Power Twist cable included in delivery (corresponding replacement: Article Nr 187464)
- Dimensions (L x H x D): 121 x 8 x 6 cm

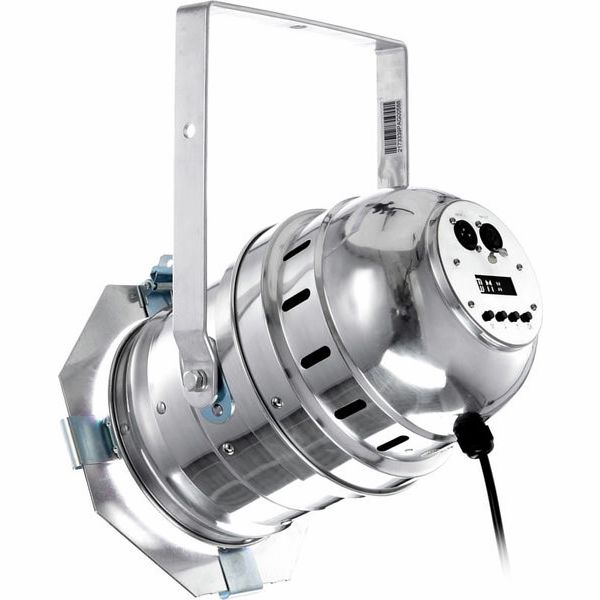

4x Stairville LED Par64 MKII RGBW 10mm SI
LED spotlight
The LED PAR64 MKII sets new benchmarks in its class. Equipped with RGBA LEDs entirely new colour mixing possibilities are available and even pastel colours can be represented well. The 10 mm LEDs have sufficient power to light up medium stages, clubs, dance floors, bars and much more. In architectural applications the LED PAR does a great job. With its black LED display the MKII LED PAR is easy to use and is the perfect "all-rounder" for everybody. The integrated programs can be accessed as easy as custom colours can be mixed statically. With the Master/Slave function the LED PAR can be used without additional DMX controller.
- Power supply: 230 V AC, 50 Hz ~
- Max. power consumption: 13 W
- Light source: 168 piece 10 mm LED RGBW (42x red, 42x green, 42x blue, 42x white)
- Beam angle: 45°
- Controllable: DMX512 (4.6 or 8 channels), music controlled "Sound-To-Light", Master/Slave, automatic
- All features can be accessed with the build in display
- DMX In-/Output: 3 pin. XLR

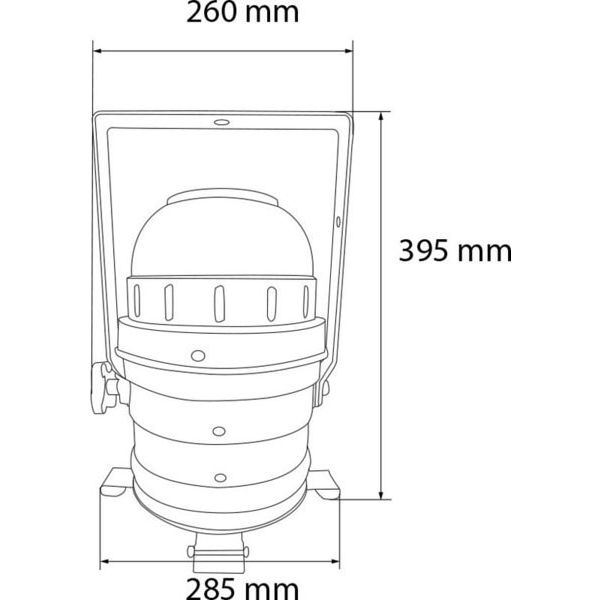

- Dimensions (L x W x D): 395 x 260 x 285 mm
- Weight: Approx. 2.1 kg
- Colour: Silver
- Including colour filter frame, mounting bracket and mains connector plug (EU)
Stageworx BLS-315 Pro Lighting Stand B
Light and Speaker Stand
- Professional quality, sturdy lighting stand
- Material: Steel / Magnesium compound
- Individually reinforced legs for high stability
- With locking pins
- Height: 150 to 310 cm
- Base diameter: Ø 120 cm
- With 35 - 36 mm adapter (note: not suitable for all speakers)
- Max. load capacity: 30 kg
- Transport length: 124 cm
- Weight: 5.60 kg
- Colour: Black
- Made in Europe
Optional accessories:
- Adapter for single recording: Article no. 293511 (not included)
- 100 cm crossbeam: Article no. 293501 (not included)
- 120 cm crossbeam: Article no. 293504 (not included)
- Suitable bag: Article no. 293512 (not included)

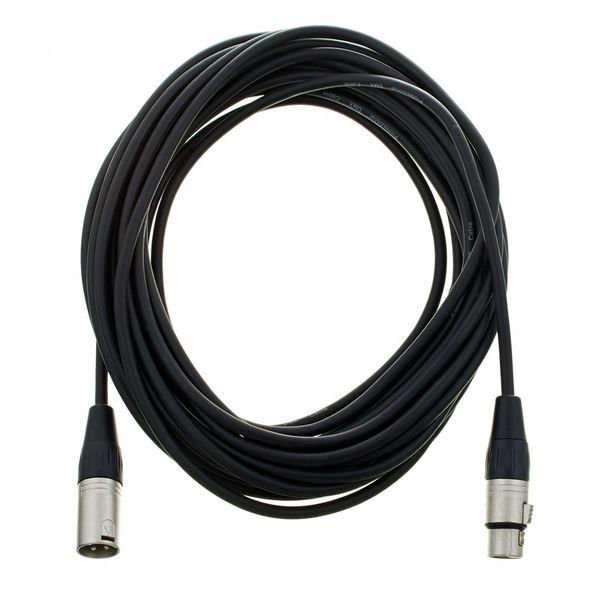

the sssnake DMX-Cable 1000/3
Professional DMX Connector Cable
- 10m
- XLR male - XLR female
- 110 Ohms
- 3 pin XLR
- Black
- With metal XLR connectors
4x pro snake TPD-3 0,5 FM
Professional DMX Cable
- With black 3 pin XLR plug
- Length: 50 cm
- Impedance: 110 Ohm
- Capacity: 72 pf
- Cross-section: 2x 0,25 mm²
- PE Insulation
- Braided Shielding: 16
- PVC Outer sheath
- Diameter: 6,0 ± 0,2 mm
- Colour: Black
- Note: Cable tie not included in delivery
