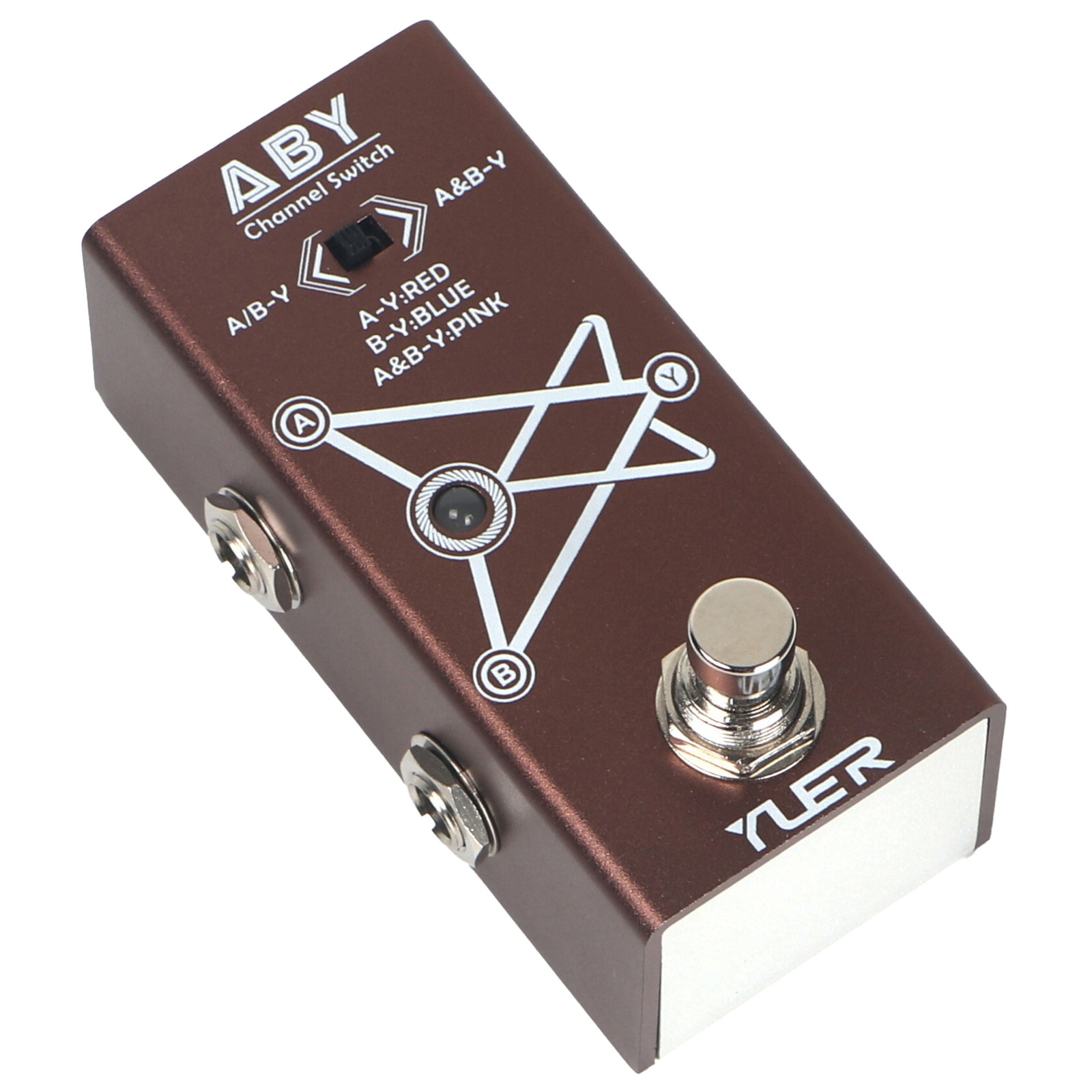

Yuer ABY - Switcher Splitter

19

ABY Switch

  • Ideal for routing instruments, amps, effects, loudspeakers, etc
  • Two different modes available: A/B - Y and A&B - Y
  • Inputs and outputs can be used in both directions
  • Enables the switching of one input signal to two outputs or two input signals to one output
  • Enables splitting of the signal to two outputs
  • Enables the merging of two signals to one output
  • True Bypass

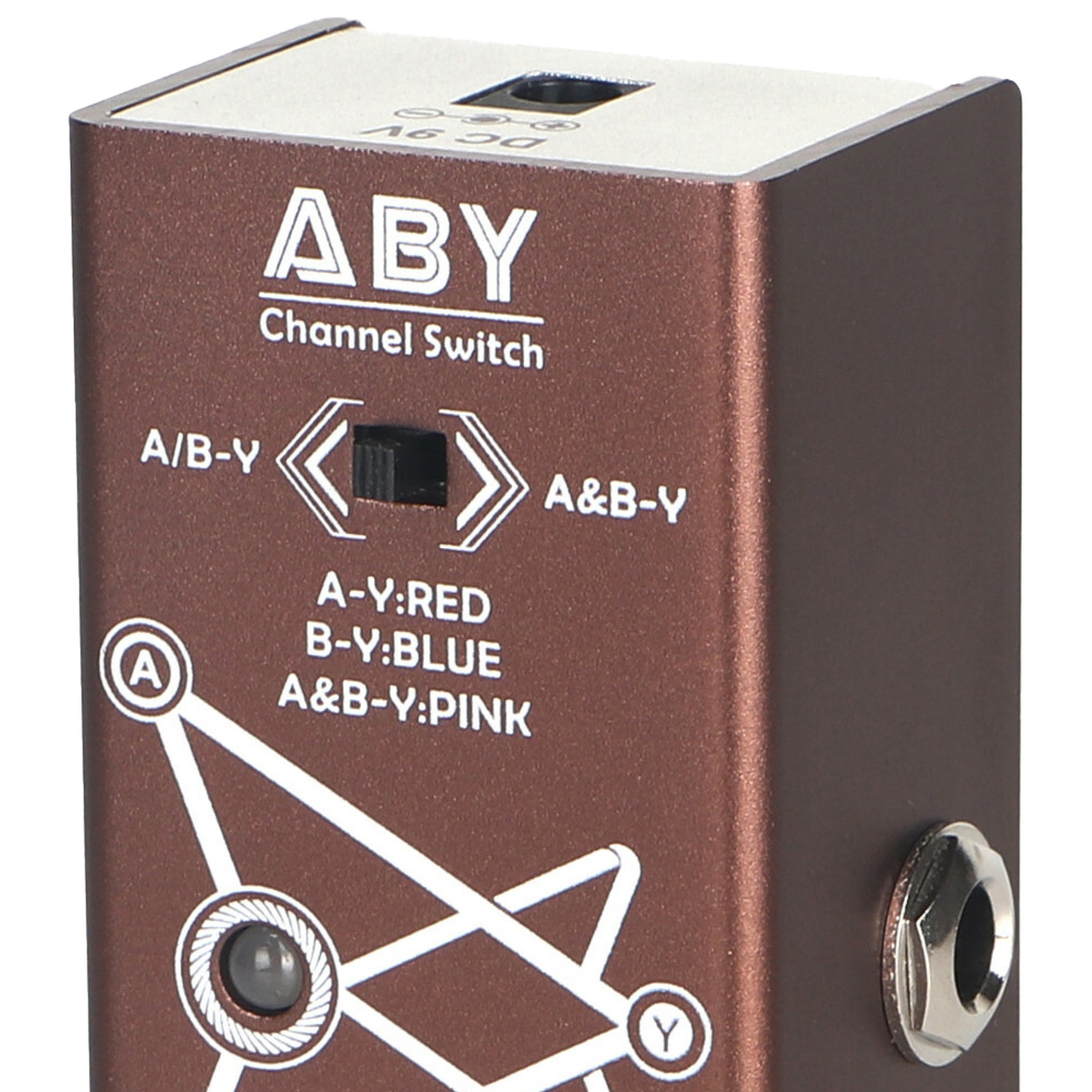

  • Switch for mode selection

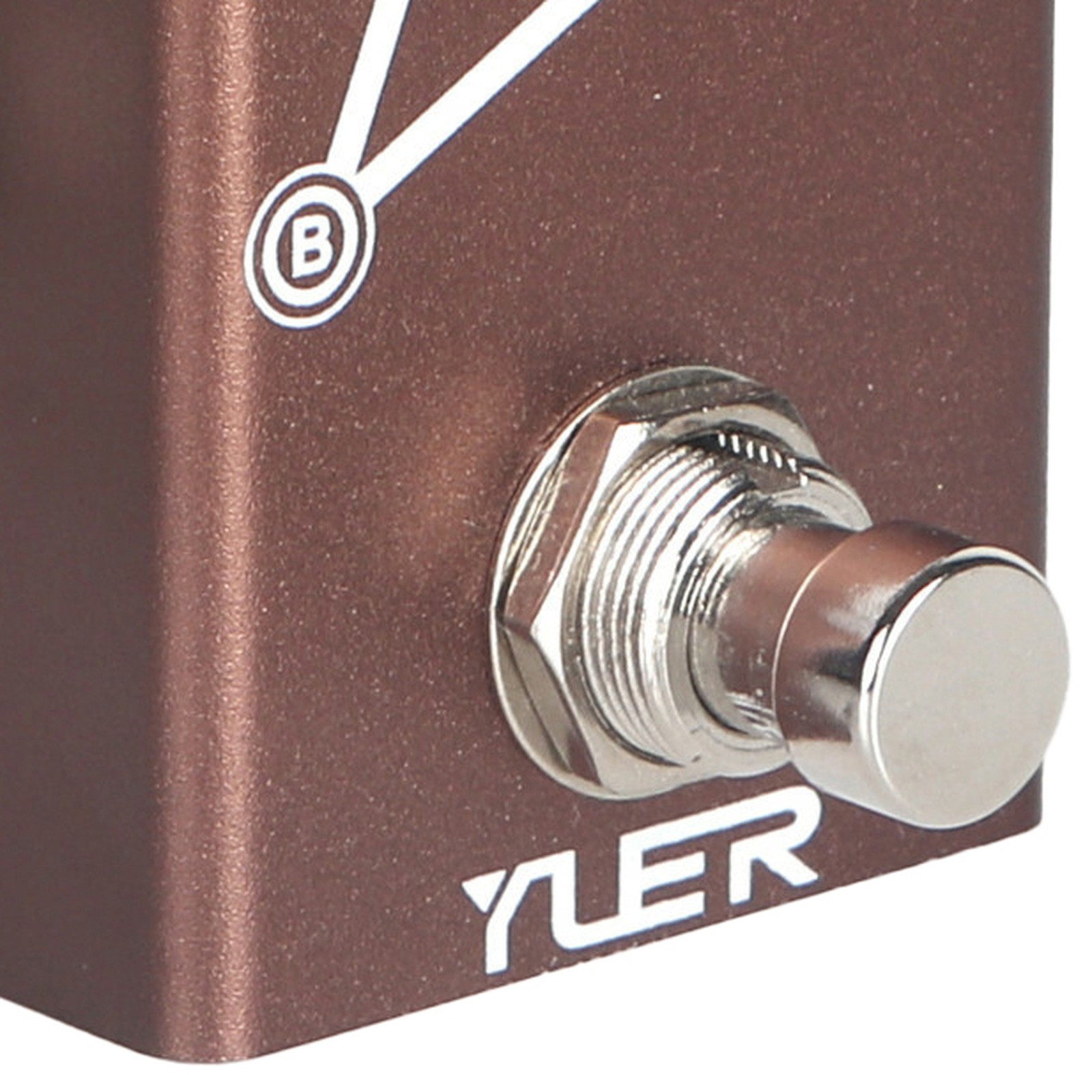

  • Channel Footswitch
  • Status LED (red, blue, pink)
  • Aluminium housing
  • Input and output: 6.3 mm mono jack
  • Power supply via optional 9V DC power supply unit (e.g. 409939, not included)
  • 2.1 mm x 5.5 mm barrel connector, center negative
  • Battery operation not supported
  • Current consumption 8 mA
  • Operation without power source possible (no status LED)
  • Dimensions (L x W x H): 92 x 42 x 52 mm
  • Weight: 145 g
Available since January 2024
Item number 578255
Sales Unit 1 piece(s)
Type A/B/Y
LED Display Yes
PSU Connector Yes
Shape Floor Effects Pedal
MIDI Interface No
83 AED 21,76 €
Plus 266 AED shipping
The price in AED is a guideline price only
Since we ship from Germany, additional costs through taxes and customs may be incurred
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times
1

19 Customer ratings

4.9 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

features

quality

14 Reviews

DD
Does what it says
Driftin' Duke 11.07.2024
A simple device, that thankfully works as it should. Although a power supply is not needed to work the pedal, it can help to know which setup has been selected because of the various LED colours of each mode. I wouldn't say it was built like a tank and would stand up to a lot of heavy abuse, but it is made from metal, so should cope with gigging. A handy little tool.
features
quality
0
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
C
Perfekt
Chabert 13.07.2024
Macht genau was es soll aber viel wichtiger, macht nicht was es nicht soll.
Keine Nebengeräusche, keine Schaltgeräusche. Dazu noch tolle Optik, gute Verarbeitung und schön klein. Betrieb ohne Strom (bei Verzicht auf die LED) gibts häufig, ist aber ein wichtiges feature. Für meine Zwecke hätte ich gern die Eingänge rechts und den Ausgang links aber da bin ich wohl allein.
features
quality
3
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
P
Yuer ABY - Switcher Splitter
Perambulator 14.03.2024
Wie immer "bestellt-geliefert, ausgepackt, eingestöpselt": Alles wie beschrieben. Super!
features
quality
0
0
Report

Report

google translate fr
Unfortunately there was an error. Please try again later.
EW
A - B > Y Well done !
Ellimac Wayfarer 03.09.2024
Je m'en sers pour alterner une basse et un synthé dans un preamp en live, pas de problème, solide, peu de perte de signal, pas de clic.

Bonne solution budget.
features
quality
0
0
Report

Report
